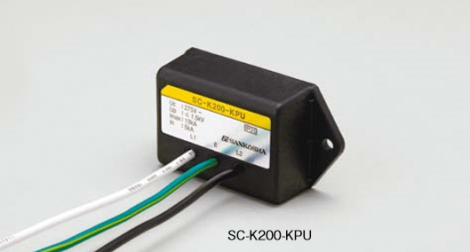

SC-K200-KPU

SC-K200-KPU

Conforming standards

  • RoHS compliant

Features

  • This products use for single-phase two-wire system
  • Space saving design to put inside devices
  • A single unit can provide provide protection across line and ground

Application

  • AC DOB LED Light
  • Built-in lightning panels etc.

Characteristics

Item Measurement conditions Performance
Maximum continuous operating voltage (Uc) - AC275V
Maximum discharge current (Imax) 8/20µs 10kA (single wire)
Nominal discharge current (In) 8/20µs 5kA (single wire)
Voltage protection level (Up) 8/20µs, L-E 1.5kV or less
              8/20µs, L-L 2.0kV or less
Impulse durability 1kA, 8/20µs 500 time

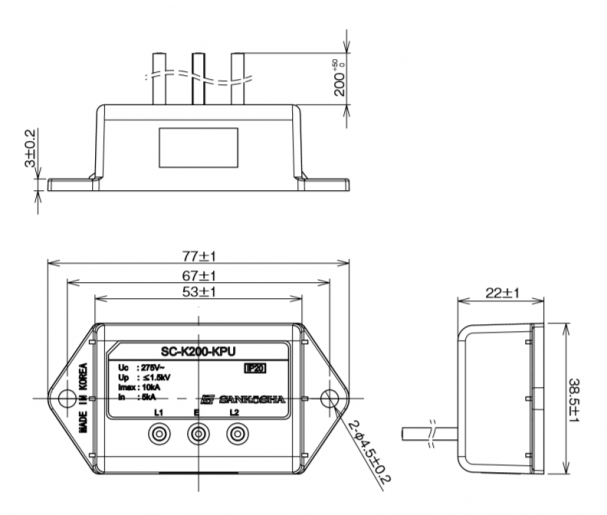

External view

1
