LAN-1000IS-2 (Isolation type)

1

Conforming standards

  • IEC 61643-351 compliant
  • RoHS compliant

Features

  • User isolation type circuits
  • Gbase Erthernet 1000BASE-T enabled
  • Earth-free type not requiring earthing construction work or protecting equipment without earthing connectors
  • Impluse withstand voltage 15kV or more
  • DIN rail mountable (35mm)

Application

  • Gigabit Ethernet
  • Network cameras
  • Ordinary households (PCs, network devices)
  • Outdoor installed network devices

Characteristics

Item Measurement conditions Performance
Applicable lines IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
Transmission loss 2dB or less
AC withstand voltage 4kV or more
Impluse withstand voltage 1.2/50µs 15kV or more

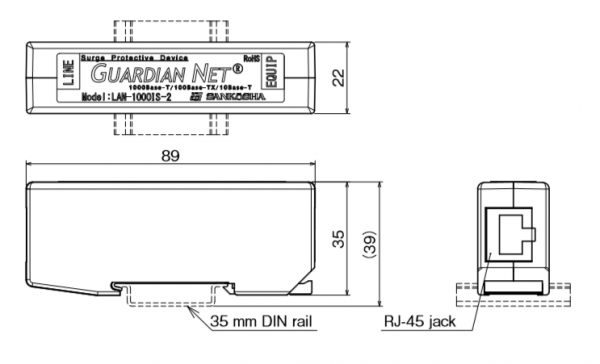

External view

1
