MZAC-200

1

IEC ClassIII compilant

Conforming standards

  • IEC 61643-11 compliant
  • RoHS compliant

Features

  • This products use for secondary side of e leakage breaker in single-phase two-wire system
  • Space saving design to put inside devices
  • Open circuit voltage 6kV (1.2/50µs)
  • Deterioration display function
  • Built-in isolation function prevents overheating in the event of device deterioration

Application

  • Built-in devices, panels

Characteristics

Item Measurement conditions Performance
Maximum continuous operating voltage (50Hz/60Hz)(Uc) - AC275V
Open circuit voltage 1.2/50µs 6kV
Voltage protection level (Up) Based on IEC 1.5kV or less

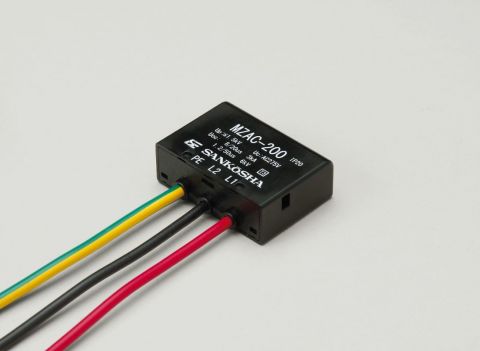

External view

1
